DC44
COB Downlight LED Lighting Round Surface Mounted

  • CE
  • PROTECTION
  • CLASS 1
  • INDOOR
  • SURFACE
  • ENERGY
  • Made In Turkiye Certificate
DC44
Housing
Electrostatic powder paint coated die cast aluminum housing
IP65 Protection
Electrical Safety Class I
Body Colors
  • RAL9016
  • RAL9005
  • RAL9006
  • Special Color
Optic
UGR (CIE Pub.117):9
IEC/EN 62471 Photo-Biologic Protection RG0

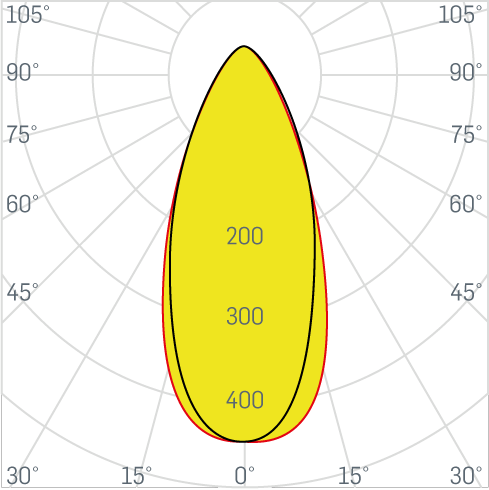

Optical Options
  • 60°
Reflector Colors
  • White
  • Black
  • Rose Gold
  • Chrome
  • Gold
  • Mat Gold
  • Smoked
LED
COB LED with a minimum lifetime of 100.000 hours
High color rendering index (CRI>80)
CRI Color Rendering
  • CRI:80
CCT Light Colors
  • 2700K
  • 3000K
  • 4000K
  • 6500K
Control
Rated Input Voltage 220-240VAC
Input Voltage Range 176-264VAC
Frequency 50-60Hz
Power Factor PF>0.60 (P≤25W) / PF>0.95 (P≥25W)
Ambient Temperature -20°C ~ +50°C
Constant Current Driver Overload Protection (OLP), Overvoltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP)
Control Options
  • ON/OFF
Emergency Lighting
Related Standarts
Luminaire Standard EN 60598-1,EN 60598-2-2
Driver Standard LVD (EN 61347-1, EN 61347-2-13),EMC ( EN 55015, EN 61547, EN 61000-3-2/3-3)

Product Dimensions

Dimensions (mm)Ø97x114
Mountage Size (mm)
Weight (kg)0

Packing Details

Quantity Per Carton (pcs.)1
(width)*(lenght)*(height) (cm)0 x 0 x 0
Gross Weight (kg)0
Pack Deci (x*y*z) / 30000
DC44-0097

COB Downlight LED Lighting Round Surface Mounted Ø97 114mm

Power Lumen Efficiency
12W 1980 lm 165 lm/W

** The values in above table are for standard products and light colors. The values may vary when the LED replaced with a LED having different performance or light color .

Product Dimensions

Dimensions (mm)Ø140x131
Mountage Size (mm)
Weight (kg)1,092

Packing Details

Quantity Per Carton (pcs.)16
(width)*(lenght)*(height) (cm)32,5 x 67 x 39
Gross Weight (kg)19,602
Pack Deci (x*y*z) / 300028,31
DC44-0140

COB Downlight LED Lighting Round Surface Mounted Ø140 131mm

Power Lumen Efficiency
24W 2693 lm 112 lm/W

** The values in above table are for standard products and light colors. The values may vary when the LED replaced with a LED having different performance or light color .
